LK956

3000 kg
4.8 m

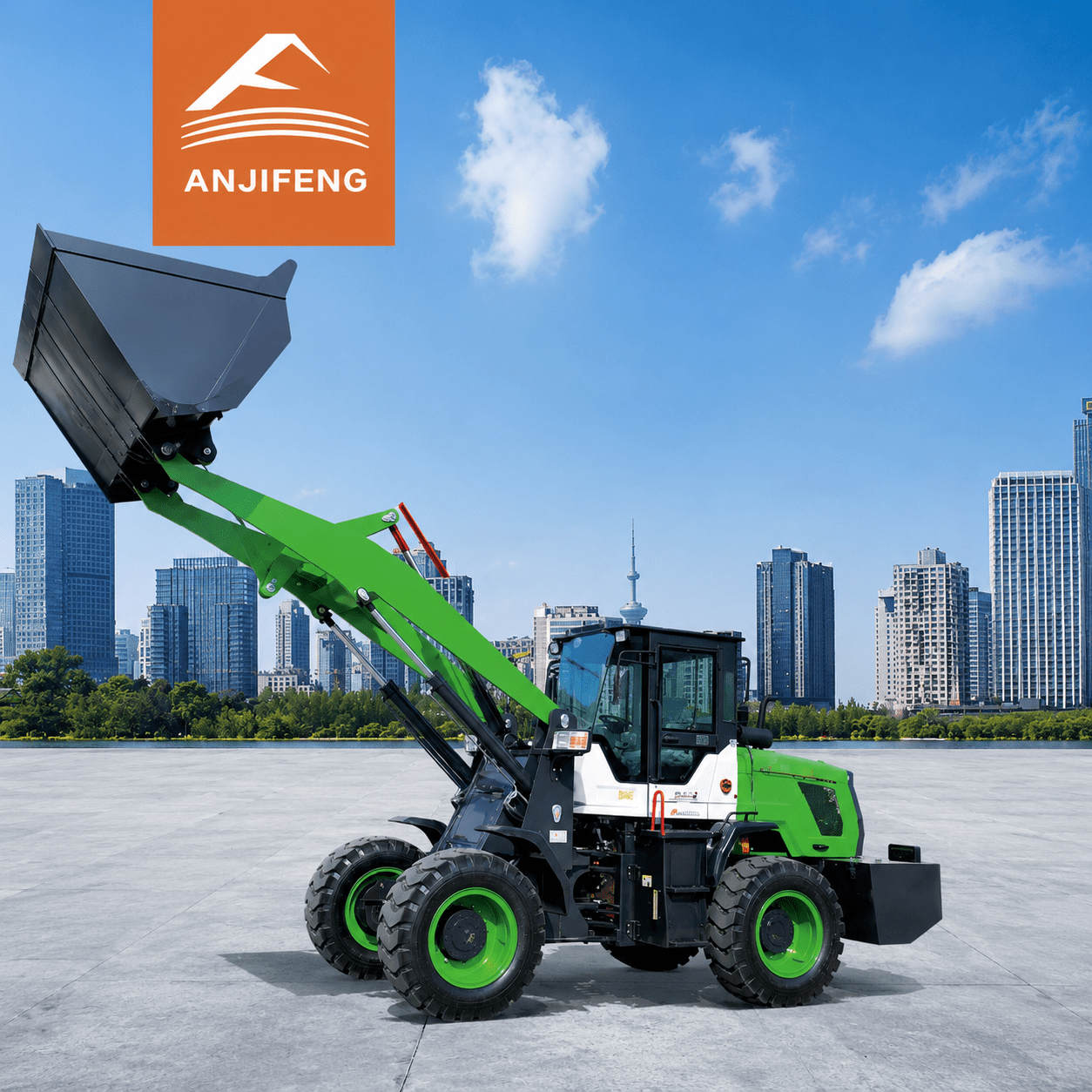

The LK956 Grain Loader is a powerful machine designed for high-volume agricultural material handling.
Equipped with a 90 kW / 121 HP YN4108T engine and a 3,000 kg rated load capacity.
Its large 2.4 m³ bucket provides efficient grain and crop loading.
With a 4,800 mm dumping height, it can easily load high-sided trucks and trailers.
Ideal for grain handling, agriculture, farming, crop transportation, and bulk material loading.

The LK956 Grain Loader is a powerful agricultural wheel loader specially designed for efficient grain and bulk material handling. With a 3,000 kg rated load capacity and a large 2.4 m³ bucket, it enables high-volume loading and unloading operations while helping improve productivity during demanding agricultural activities.

Powered by a YN4108T engine delivering 90 kW (121 HP), the LK956 provides strong and reliable performance for heavy-duty applications. Its 4,800 mm dumping height allows efficient loading into trucks, trailers, and other high-sided transport equipment.

The LK956 features a wide bucket designed to handle different types of agricultural materials efficiently while helping minimize material loss and waste during loading and unloading. Its robust structure, large ground clearance, and durable off-road tyres make it suitable for demanding farm and outdoor working environments.

The LK956 Grain Loader is an ideal solution for grain loading, crop handling, agricultural transportation, farm operations, and other high-volume material handling applications.

Specifications
Specification Details
Model LK956
Machine Type Grain Loader / Agricultural Wheel Loader
Engine YN4108T
Engine Power 90 kW / 121 HP
Rated Load Capacity 3,000 kg
Bucket Capacity 2.4 m³
Dumping Height 4,800 mm
Unloading Distance 1,330 mm
Total Weight 7,100 kg
Tyres 16/70-24
Overall Dimensions (L × W × H) 8,255 × 2,650 × 3,180 mm
Bucket Width × Height 2,400 × 1,000 mm
Arm Thickness 30 mm
Boom Center Distance 960 mm
Wheel Track 1,670 mm
Wheelbase 2,720 mm
Minimum Ground Clearance 380 mm
Cylinder Size 60/100 mm; 70/110 mm
Upper Plate Thickness 40 mm
Hinge Plate Thickness 40/30 mm
